3M Daylight Redirecting Film


Daylight Redirecting

Increase employee productivity

Improve student test scores

Improve patient recovery times

Boost retail sales

Decrease rates of absenteeism

Reduce energy costs


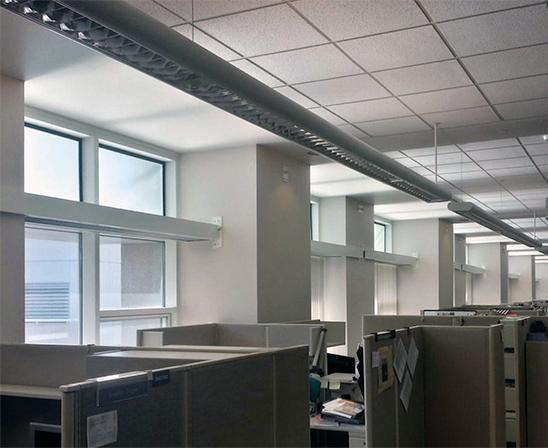

3M™ Daylight Redirecting Film is a simple, effective daylighting solution which comfortably brings natural light deeper into buildings.

3M™ Daylight Redirecting Film is designed to move excess light close to the window and redirect it deeper into the building to increase the daylighting penetration. Bringing natural light deeper into the building helps provide the many benefits of natural light for more occupants as well as helping reduce the need for artificial lighting which can save energy.

In addition, 3M Daylight Redirecting Film:

Reduces glare and discomfort caused by direct sunlight on occupants

Redirects natural light as much as 40 ft. or more into the building

Extends daylight zone up to 8 ft. into the interior for every 1 ft. of treated window

Can provide up to 52% lighting energy savings compared to baseline usage

Can provide savings of up to 1.5 kwh/sq.ft. of floor area

Simple, effective, daylighting solution.

Compared to existing light reflecting strategies, 3M Daylight Redirecting Film is easily integrated into new or existing windows.

It requires no extra hardware or infrastructure, and little to no additional maintenance or special cleaning. It works at all times of the day, even when the sun is at a low angle. Plus, it’s more cost effective than many existing daylighting solutions

Daylighting diagram 1

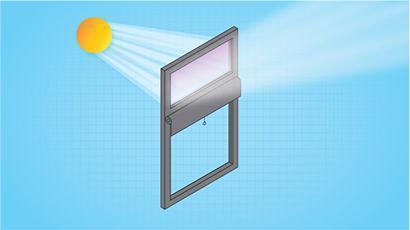

3M™ Daylight Redirecting Film is installed in the upper portion of the window.

Daylighting diagram 2

Daylight is redirected upwards toward the ceiling, allowing natural light to penetrate deeper into the building.

Daylighting diagram 3

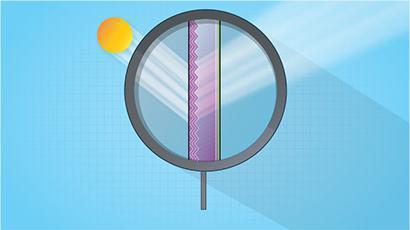

Made of micro-structured prisms, the film optically redirects over 80% of daylight upward and diffuses it for even distribution.

Clear Glass Window


When Shades Are Open

Direct sunlight can beam into the space at low angles, causing glare and discomfort.


When Shades Are Closed

Shades are closed to block uncomfortable direct sunlight, which also decreases natural light in the space.

3M™ Daylight Redirecting Film


When Shades Are Open

The light from the upper glass is redirected to the ceiling, increasing natural light and decreasing glare in the space caused by direct sunlight.


When Shades Are Closed

Even when the vision glass shades are drawn, natural light continues to penetrate into the space through the clerestory glass with 3M Daylight Redirecting Film.

Optimizing natural light is good for business.

Installing 3M™ Daylight Redirecting Film provides a better experience for everyone.


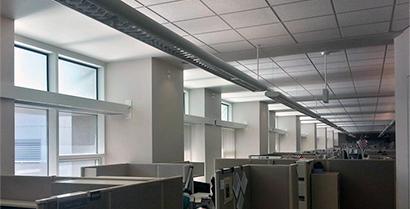

Office Buildings

  • Increase tenant comfort
  • Boost employee productivity
  • Decrease rates of absenteeism
  • Improve tenant retention
  • Reduce energy costs

Schools

  • Improve student test scores
  • Decrease rates of absenteeism
  • Keep students more comfortable so they can focus on schoolwork
  • Reduce energy costs

Hotels

  • Improve guest comfort
  • Create brighter interiors
  • Reduce energy costs

Healthcare

  • Increase patient comfort
  • Improve patient recovery times
  • Get the benefits of natural light in healing
  • Reduce energy costs

Retail

  • Increase customer comfort
  • Create brighter interiors
  • Boost retail sales
  • Reduce energy costs
  • Get the benefits of viewing merchandise under natural light

Government

  • Improve tenant comfort
  • Increase employee productivity
  • Decrease rates of absenteeism
  • Reduce energy costs

Daylight Redirecting Film

Product Performance


 DRF Single Pane Single Pane/Tinted Double Pane Double Pane/Tinted
  single pane single pane/tinted dbl pane dbl pane/tinted
Solar Heat Reduction 45% 37% 25% 22%
Heat Loss Reduction 3% 3% 0% 0%
Glare Reduction 43% 44% 44% 43%
UV Blocked 99% 99% 99% 99%
Total Solar Energy Rejected 58% 60% 47% 60%

Technical Data


Glass Type
Applied Product
Shading Coefficient
Visible Light
Emissivity
"U" Value

Reflected
Transmitted
singlepane
None
0.94
8%
88%
0.84
1.06
DRF
0.58
9%
68%
0.78
.99
singlepane2
None
0.69
5%
50%
0.84
1.06
DRF
0.50
8%
41%
0.78
.99
dblpane
None
0.81
14%
78%
0.84
0.50
DRF
0.64
13%
61%
0.78
0.46
dblpane2
None
0.55
8%
45%
0.84
0.50
DRF
0.48
12%
37%
0.78
0.46
